Steiner DBAL-A3

Black Steiner DBAL-A3 laser aiming module with adjuster caps and illuminator lens, three-quarter view

Aiming laser and IR illuminatorOptics & Lasers

The DBAL-A3 combines a visible aiming laser, an infrared aiming laser and an adjustable infrared illuminator in an aluminum housing on a quick release Picatinny mount. It has high and low power modes, one activation switch, and remote cable ports for remote fire and a visible override when used with a weapon light.

  • DBAL-A3 in black, rear three-quarter view showing controls and adjusters
    01

    Night Aiming

    The DBAL-A3 combines a dual-beam infrared aiming laser and IR illuminator with a visible red or green laser in one weapon-mounted unit.

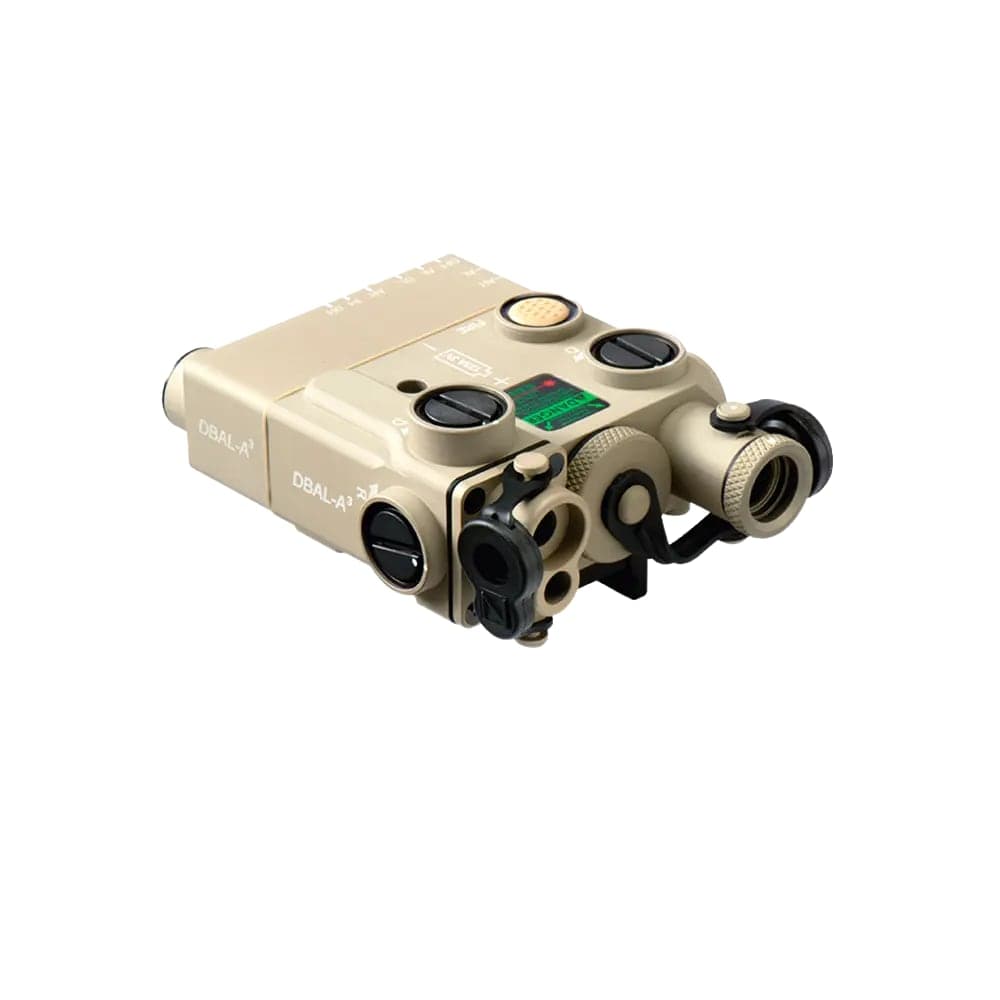

  • DBAL-A3 in flat dark earth, three-quarter view
    02

    Target Acquisition

    An adjustable IR illuminator supports long-distance, mid-range or close-quarters target acquisition.

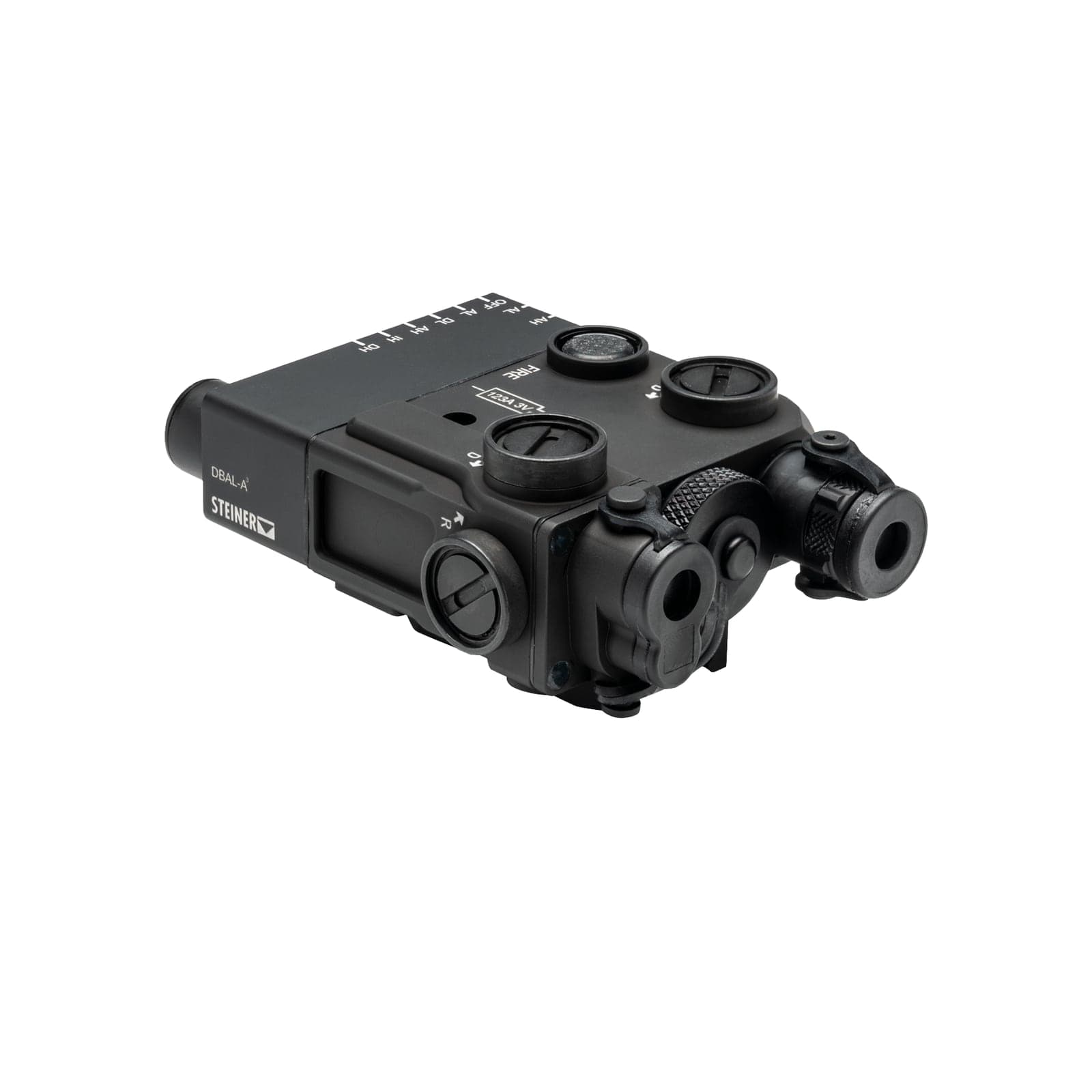

  • DBAL-A3 in black, front three-quarter view showing laser apertures
    03

    Weapon Light Integration

    A single activation switch and built-in visible override function work with weapon-mounted flashlights, with dual remote cable ports for remote fire and visible override.

Details

  • Visible laser (9008)

    Green 520 nm, <5 mW, Class 3R

  • IR aiming laser

    850 nm, <0.7 mW, Class 1

  • IR illuminator

    830 nm, <4.0 mW, Class 3R, 95-195 mrad

  • Battery

    CR123A, more than 3 hrs

  • Weight / dimensions

    8.3 oz (235 g) with battery; 3.7 x 2.7 x 1.7 in

  • Battery life

    >3 Hours

  • Operating temperature

    -20° C to +65° C

  • Mount

    Patented self-adjusting Quick Release HT Mount (Picatinny)

  • Material

    6061-T6 Aircraft Aluminum, MIL-SPEC Type III Hardcoat Anodized

  • Activation

    Integrated push button and remote cable; tap for momentary, double tap for 5 minute continuous

  • Colors

    Black or Flat Dark Earth

  • Manufacturer

    Steiner

  • Category

    Optics & Lasers

  • Status

    Fielded

  • Missions

    Night OperationsClose Quarters Battle

  • Source

    Manufacturer page
