Nocturn Chimera

Nocturn Industries Chimera night vision system

Stowable-pod night vision systemNight Vision

Clearing a doorway or ducking into a vehicle with a bulky quad-tube rig is exactly the problem the Chimera solves: each pod stows independently, letting operators fold the unit back to helmet profile for tight spaces while still running weapon-mounted thermal alongside night vision when both pods are deployed. Built from 7075-T6 aluminum around PVS-14-spec optics, with a bridge option for GPNVG-18, ANVIS-10, and Photonis Pro-Q systems, it moves weight closer to the neck's pivot point to cut the fatigue that comes with a long night on quad tubes.

  • Black Chimera with its four pods articulated, on a white background
    01

    Panoramic Night Vision

    Nocturn describes the Chimera (U.A.P.N.V.G.) as an ultralight articulating panoramic night vision goggle and the first articulating quad-tube device, using PVS-14 front objective lenses.

  • Coyote brown Chimera with pods articulated apart, on a white background
    02

    Confined Spaces

    Each pod can be stowed independently without folding the whole device, which helps users clear doorways, gain head clearance in vehicles, move through confined spaces and reduce snag hazards in brush.

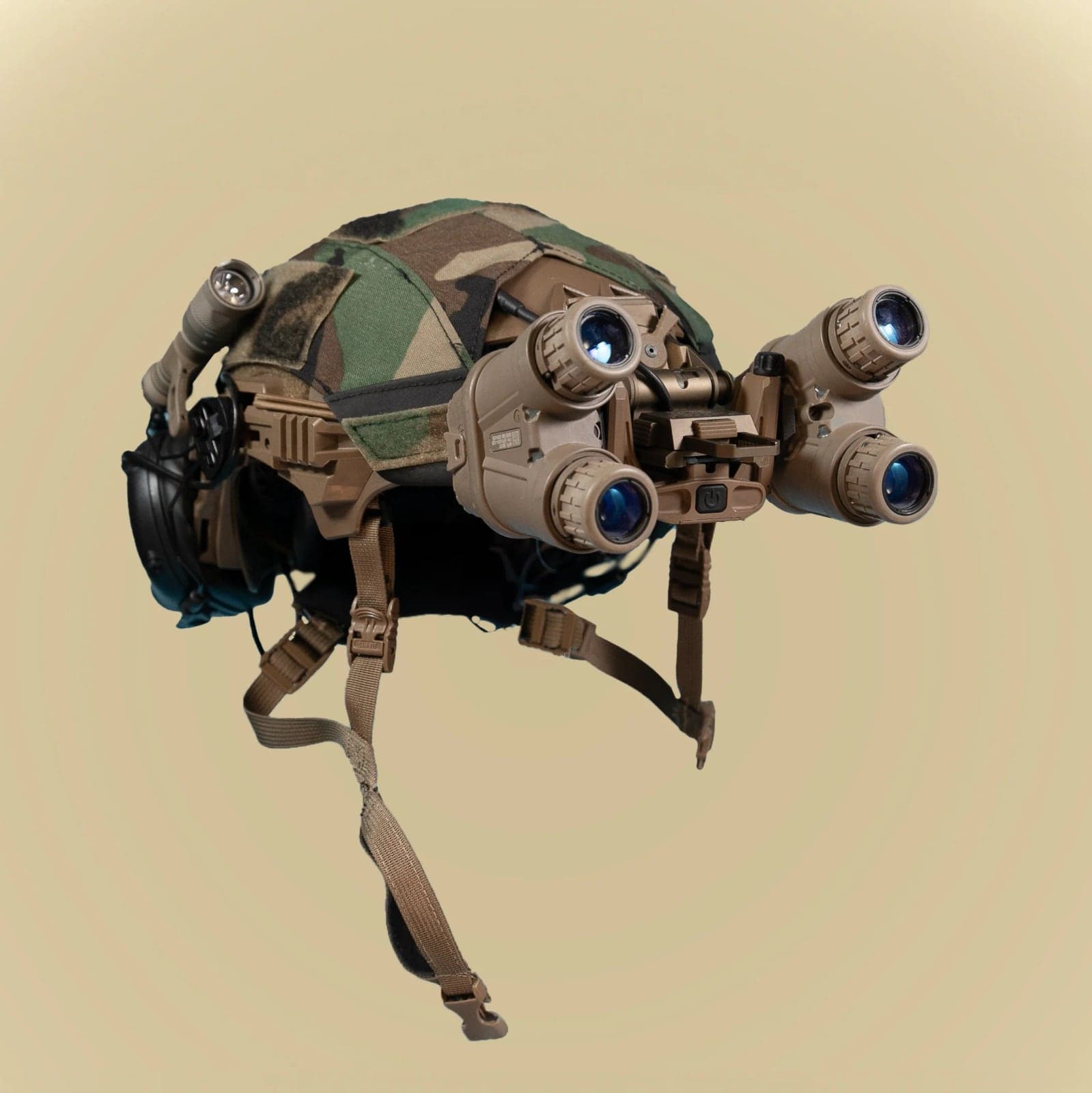

  • Front view of the Chimera mounted on a camouflage-covered helmet
    03

    Thermal and Weapon Optics

    Pod articulation lets users rotate the tubes aside to use thermal optics or weapon-mounted optics while keeping quick access to night vision.

  • Helmet side view with the coyote brown Chimera pods stowed rearward
    04

    Reduced Neck Strain

    The pods stow rearward toward the helmet, moving the center of gravity closer to the neck's pivot point to reduce fatigue during extended use.

Details

  • Construction

    7075-T6 aluminum

  • Optics

    PVS-14 spec

  • Bridge options

    GPNVG-18, ANVIS-10, Pro-Q

  • System weight

    28.00 oz. - 1.75 lbs. - 794 g

  • Ingress rating

    IP68+ and MIL-STD-810H rated

  • Battery life

    Battery pack (4x CR123A) with a runtime of ~48 hours

  • Individual pod on/off

    Yes

  • Tube type

    3 contact pad style 18mm MX-11769, MX-11769 style with EGAC pigtail removed, or MX-10160 with loss of manual gain

  • Finish

    Type III class II hard anodize (Black) or H-series Cerakote (Coyote Brown)

  • Manufacturer

    Nocturn Industries

  • Category

    Night Vision

  • Status

    Fielded

  • Missions

    Night Operations
