L3Harris Next Generation Aiming Laser (NGAL)

Tan L3Harris NGAL aiming laser with twin emitter lenses, three-quarter view

Compact visible and IR aiming laserOptics & Lasers

NGAL is a credit card sized aiming laser with co-aligned visible and infrared aiming lasers and a variable-divergence infrared illuminator, compatible with all generations of night vision devices. It has independent boresight adjusters for the aim lasers and illuminator, and its power levels can be set to customer requirements.

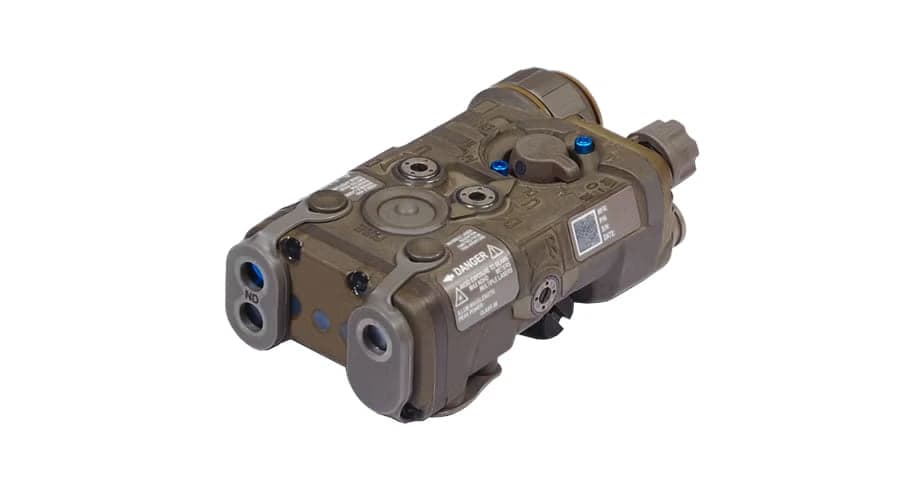

  • NGAL aiming laser in tan, three-quarter view
    01

    Night Vision Aiming

    L3Harris describes NGAL as a rugged, ultra-compact aiming laser designed to be compatible with all generations of night vision devices.

  • Soldier with night vision goggles and rifle, stylised night image
    02

    Situational Awareness

    An advanced illuminator design gives a more uniform near infrared illuminator beam for increased situational awareness.

  • 03

    Reduced Weapon Load

    About the size of a credit card, NGAL uses high-efficiency electronics to deliver its performance at reduced size, weight and power.

Details

  • Dimensions

    3.6 x 2.0 x 1.25 in

  • Weight

    < 5 oz with battery

  • Visible aim laser

    635 nm; 4.9 mW low (3R), 80 mW high (3B)

  • IR aim laser / illuminator

    840 nm aim, 0.6 to 35 mW; 860 nm illuminator, 2.7 to 90 mW

  • Battery

    One DL123 or AA; 3.5 hrs in dual high

  • Battery life

    3.5 hrs. in dual high

  • Visible laser wavelength

    635 (±15) nm

  • IR aim laser wavelength

    840 (±15) nm

  • IR illuminator divergence

    15 to 105 mrad

  • Boresight retention

    ≤ 0.5 mrad, co-aligned aiming beams

  • Adjusters

    Independent aim and illuminator boresight adjusters

  • Manufacturer

    L3Harris

  • Category

    Optics & Lasers

  • Status

    Fielded

  • Missions

    Night OperationsClose Quarters Battle

  • Source

    Manufacturer page
