L3Harris ATPIAL High Power (LA-5/PEQ)

Tan L3Harris ATPIAL aiming laser with rail grabber mount, three-quarter view

High power aiming laser and illuminatorOptics & Lasers

The ATPIAL (Advanced Target Pointer Illuminator Aiming Laser) is an aiming system with co-aligned visible and infrared aiming lasers and an infrared illuminator, hardened for small arms and crew-served weapons. It is known in standard power form as the AN/PEQ-15, and L3Harris also offers it in a high power configuration, which carries the LA-5/PEQ designation.

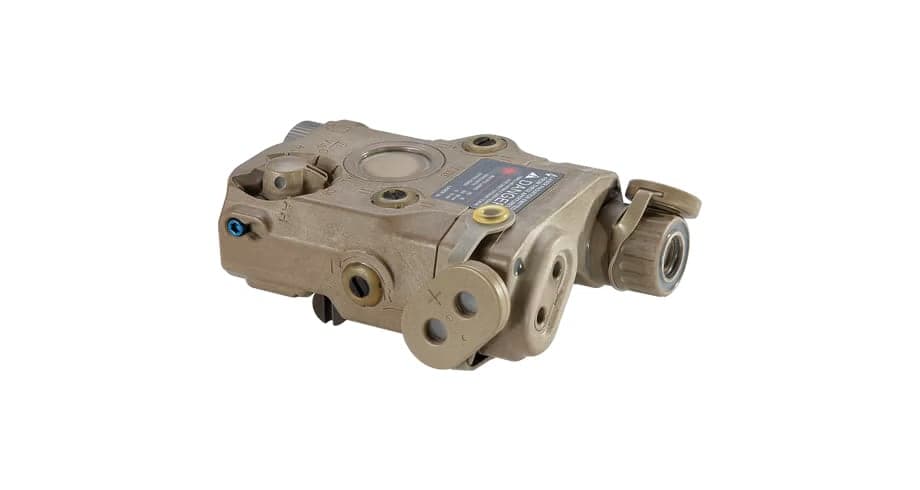

  • ATPIAL AN/PEQ-15 in tan, three-quarter view
    01

    Weapon Aiming

    The ATPIAL is a small, lightweight aiming system with integrated infrared and visible aiming lasers and an infrared illuminator.

  • Soldier firing a rifle fitted with an ATPIAL in a desert setting
    02

    Crew-Served Weapons

    It is ruggedized to military environmental standards for use on small arms and crew-served weapons.

  • 03

    Night Operations

    Co-aligned visible and infrared lasers and an adjustable IR illuminator support aiming and illumination for night vision users.

Details

  • Dimensions

    4.6 x 2.8 x 1.6 in

  • Weight

    7.5 oz with battery

  • Battery

    One 3 V lithium

  • Zero retention

    Within 0.5 mrad

  • Mount

    Integral Rail-Grabber interface

  • Configurations

    Standard power or high power

  • Visible laser wavelength

    635 (±15) nm

  • IR wavelength

    835 (±15) nm

  • IR illuminator divergence

    Adjustable from approximately 1 mrad to > 105 mrad

  • Environmental

    Meets military environmental specifications

  • Manufacturer

    L3Harris

  • Category

    Optics & Lasers

  • Status

    Fielded

  • Missions

    Night OperationsClose Quarters Battle

  • Source

    Manufacturer page
