Equipment that has to work every time.

From weapon systems and unmanned platforms to vehicles and aerial assets, our armory reflects the equipment we actually field, maintained to the same standard we train to.

Browse the systems we field and the equipment we procure, integrate and train on under contract. Identify what fits the requirement and send an inquiry for follow-up from our team.

90 / 90

MK19 MOD 3 40mm Grenade Machine Gun

MK19 grenade machine gun on a tripod in a desert setting

Vehicle-mounted 40mm grenade machine gunWeapons

An air-cooled, belt-fed, blowback operated, fully automatic 40mm grenade machine gun that can be mounted on vehicles or a tripod. It fires a range of 40mm high-velocity grenades from disintegrating metallic link belts.

  • U.S. Marines firing tripod-mounted MK19 grenade machine guns on a range
    01

    Area Suppression

    Delivers continuous 40mm fire at short and long range against dismounted infantry in the open, in defilade or in entrenched fighting positions.

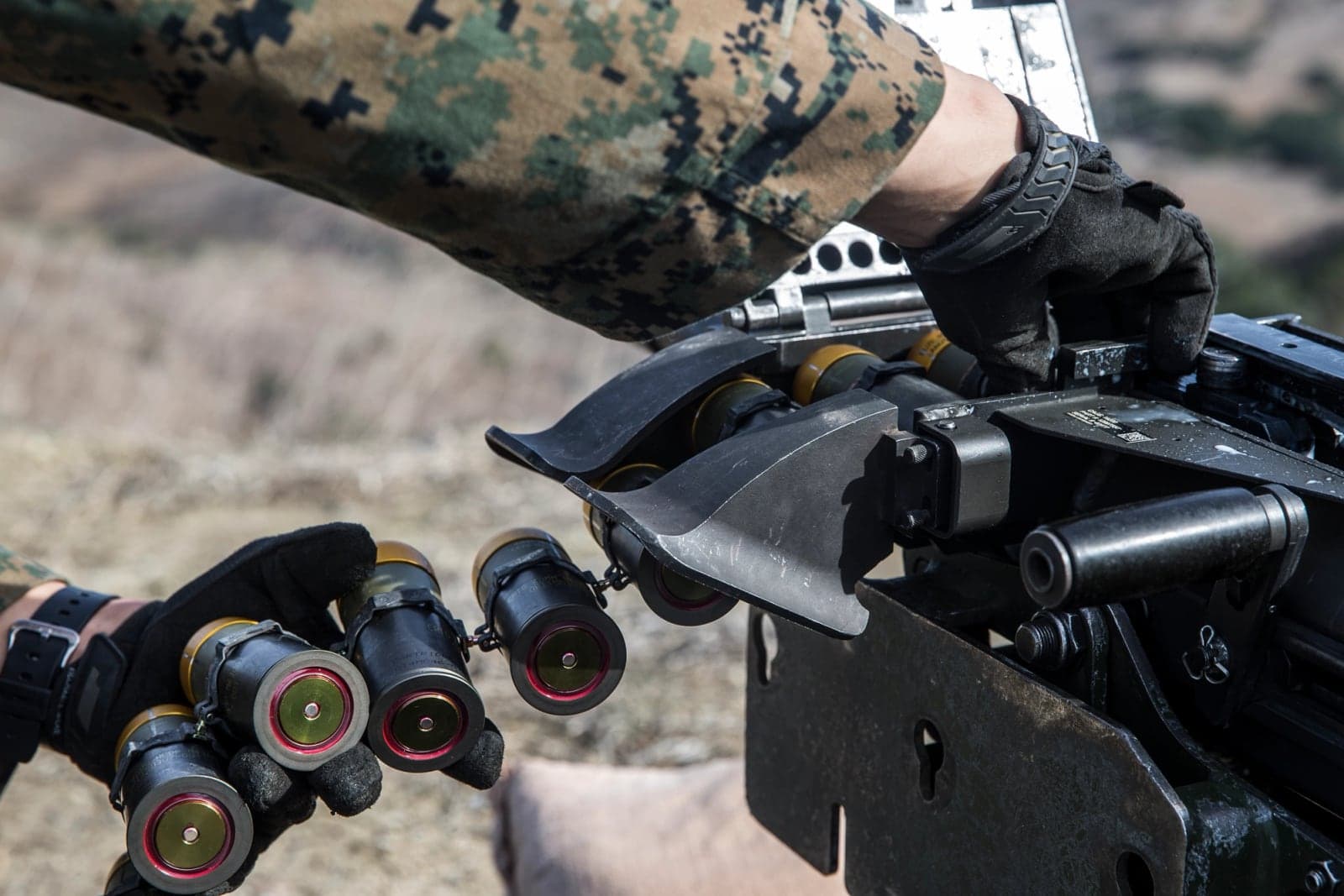

  • Close view of a Marine loading linked 40mm grenades into a MK19 feed tray
    02

    Light Armor Defeat

    HEDP grenades are rated to penetrate 75mm of rolled homogenous armor, enough for most infantry fighting vehicles and armored personnel carriers, according to US Ordnance.

  • Marine firing a MK19 from a ground mount during a live-fire range in Norway
    03

    Vehicle Mounting

    Low recoil and light weight have let the gun be fitted to small attack boats, HMMWV, AAV and Stryker vehicles and naval mounts, as well as ground tripods.

  • 04

    Riverine Origins

    The MK19 was first developed to give the U.S. Navy an effective riverine patrol weapon in Vietnam, and a late-1970s improvement program produced the MOD 3.

Details

  • Caliber

    40mm

  • Gun weight

    72.5 lb (32.92 kg)

  • Length

    43.1 in (109.47 cm)

  • Cyclic rate

    325-375 rounds per minute

  • Max effective range

    1600 m

  • Operation

    Air cooled, blowback operated, open bolt, belt-fed

  • Muzzle velocity

    241 meters per second (790 feet per second)

  • Maximum range

    2,212 meters (2,419 yards)

  • Rapid / sustained rate

    60 / 40 rounds per minute

  • Width

    13.4 inches (340 mm)

  • Weapon life

    50,000 rounds

  • Manufacturer

    General Dynamics OTS

  • Category

    Weapons

  • Status

    Fielded

  • Missions

    Fire SupportForce Protection

  • Source

    Manufacturer page
