L3Harris AN/PRC-167 Multi-channel Manpack

A green dual-channel manpack radio with keypad, display and antenna connectors on each side

Dual-channel MANET and SATCOM manpackCommunications

A software-defined, dual-channel Falcon IV manpack that crossbands voice and data across SATCOM, line-of-sight and MANET modes, with MUOS-capable hardware for beyond-line-of-sight on the move. An external mission module interface adds options such as full motion video ISR.

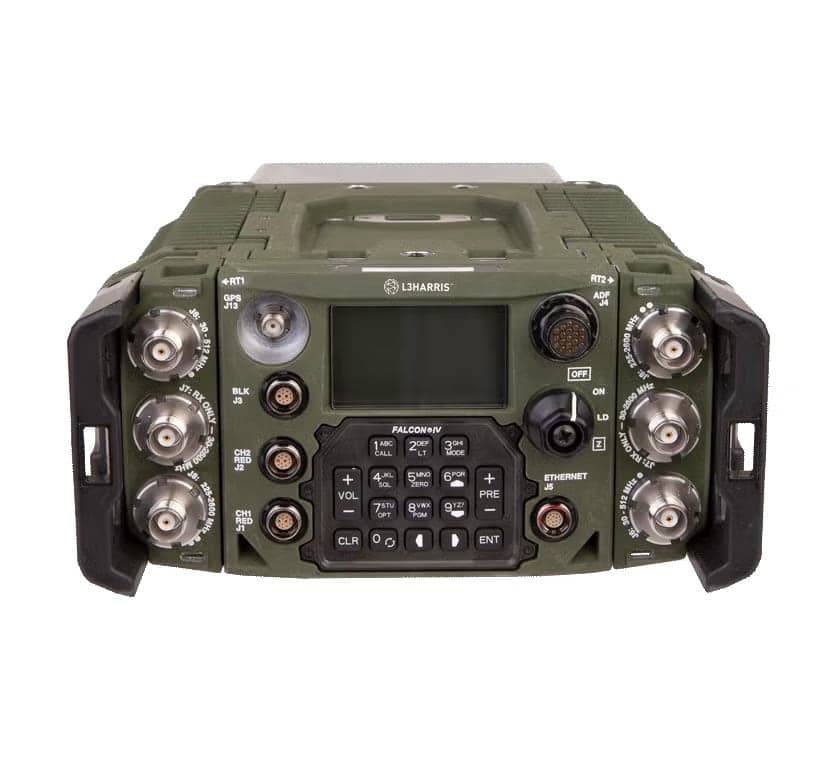

  • Front panel of the AN/PRC-167 manpack with its display, keypad and antenna ports
    01

    Multi-Domain Missions

    The AN/PRC-167 is built for any combination of ground, vehicular and airborne missions, connecting users across a broad waveform portfolio on each of two independent channels.

  • Soldiers with rucksacks and radios crouched in tall grass at dusk
    02

    Crossbanding and MANET

    Advanced crossbanding and high-speed TSM-X MANET give a shared common operational picture, with simultaneous, fully redundant dual-channel voice, data and video.

  • 03

    Mobile SATCOM

    Besides legacy SATCOM, the radio includes MUOS-capable hardware for beyond line-of-sight communications on the move, with L-band SATCOM as an alternative mode.

  • 04

    ISR Video

    An external mission module interface lets users add options such as full motion video ISR and SATCOM as mission needs change.

Details

  • Frequency

    30-512 MHz and 764-2600 MHz, both channels

  • Output power

    250 mW up to 20 W, LOS and SATCOM

  • Wideband data

    Up to 50 Mbps

  • Weight

    12.9 lb (5.85 kg) with battery

  • Encryption

    Denali-based Type 1, up to TOP SECRET

  • Dimensions (with battery)

    3.50 H x 7.25 W x 14.31 D in (8.89 H x 18.41 W x 36.34 D cm)

  • Operating temperature

    -40°F to 140°F (-40°C to +60°C)

  • Immersion

    2-meter salt water (MIL-STD-810G)

  • GPS

    Built-in module, SAASM L1/L2

  • Power input

    18 VDC to 35 VDC; up to 180 W consumption

  • Battery

    BB-2590/U for full radio capability; can use BA-5590/U and BA-5390/U

  • Manufacturer

    L3Harris

  • Category

    Communications

  • Status

    Available through 2ATG

  • Missions

    Command & ControlISR

  • Source

    Manufacturer page
