Aimpoint Micro T-2 with 3X-P Magnifier

Black Aimpoint Micro T-2 red dot sight with 3X-P magnifier behind it on a Spuhr mount, side view

Red dot sight and 3x magnifierOptics & Lasers

The Micro T-2 is a compact 2 MOA red dot sight in a hard-anodized aluminum housing with flip-up lens covers and night vision compatible settings. Aimpoint packages it with the 3X-P magnifier, which uses the sight's dot as its aiming point so no re-zeroing is needed when switching between 1x and 3x.

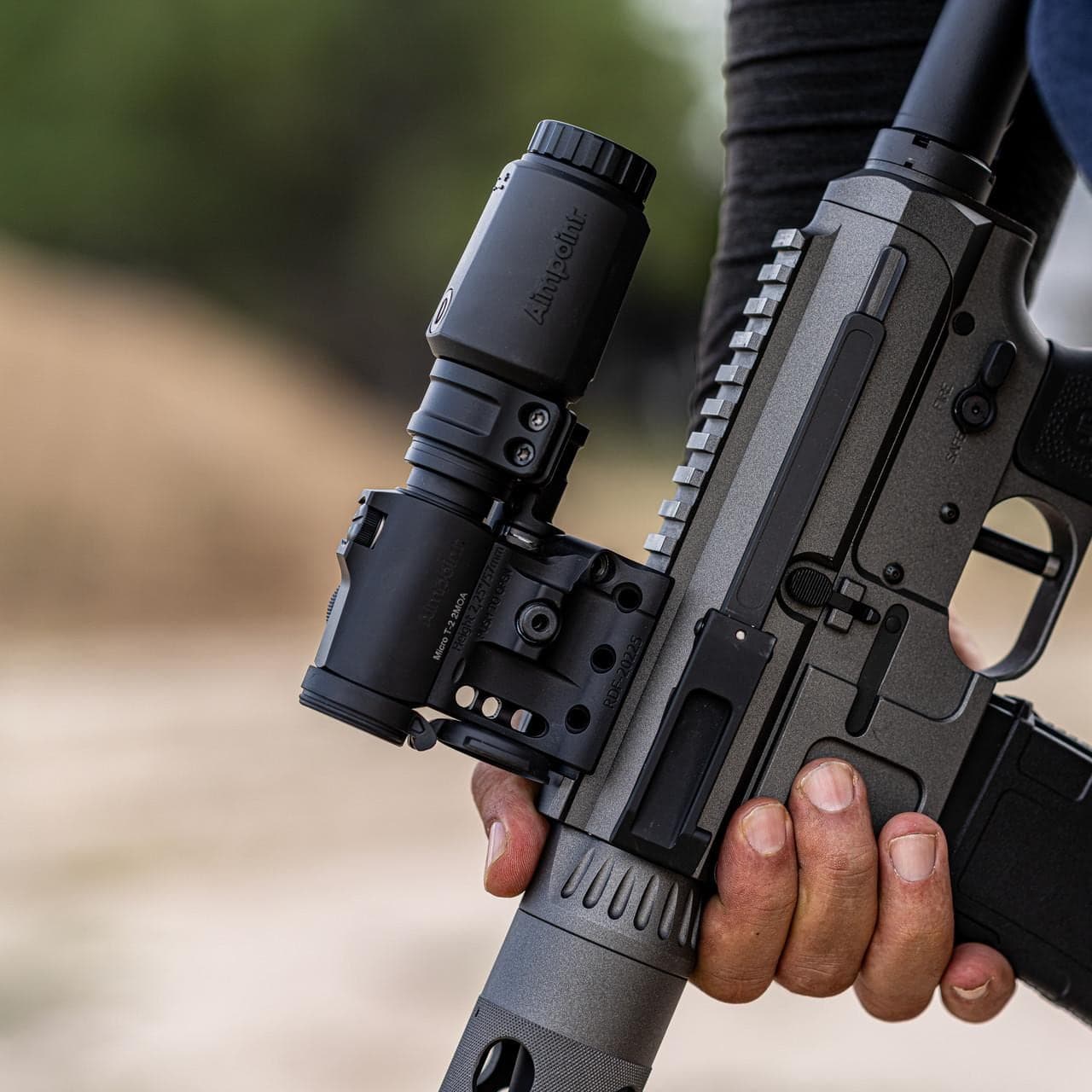

  • Micro T-2 and 3X-P magnifier on a rifle held outdoors
    01

    Rapid Target Acquisition

    The Micro T-2 uses a 2 MOA red dot for precision and fast target acquisition, in a rugged, lightweight and compact sight.

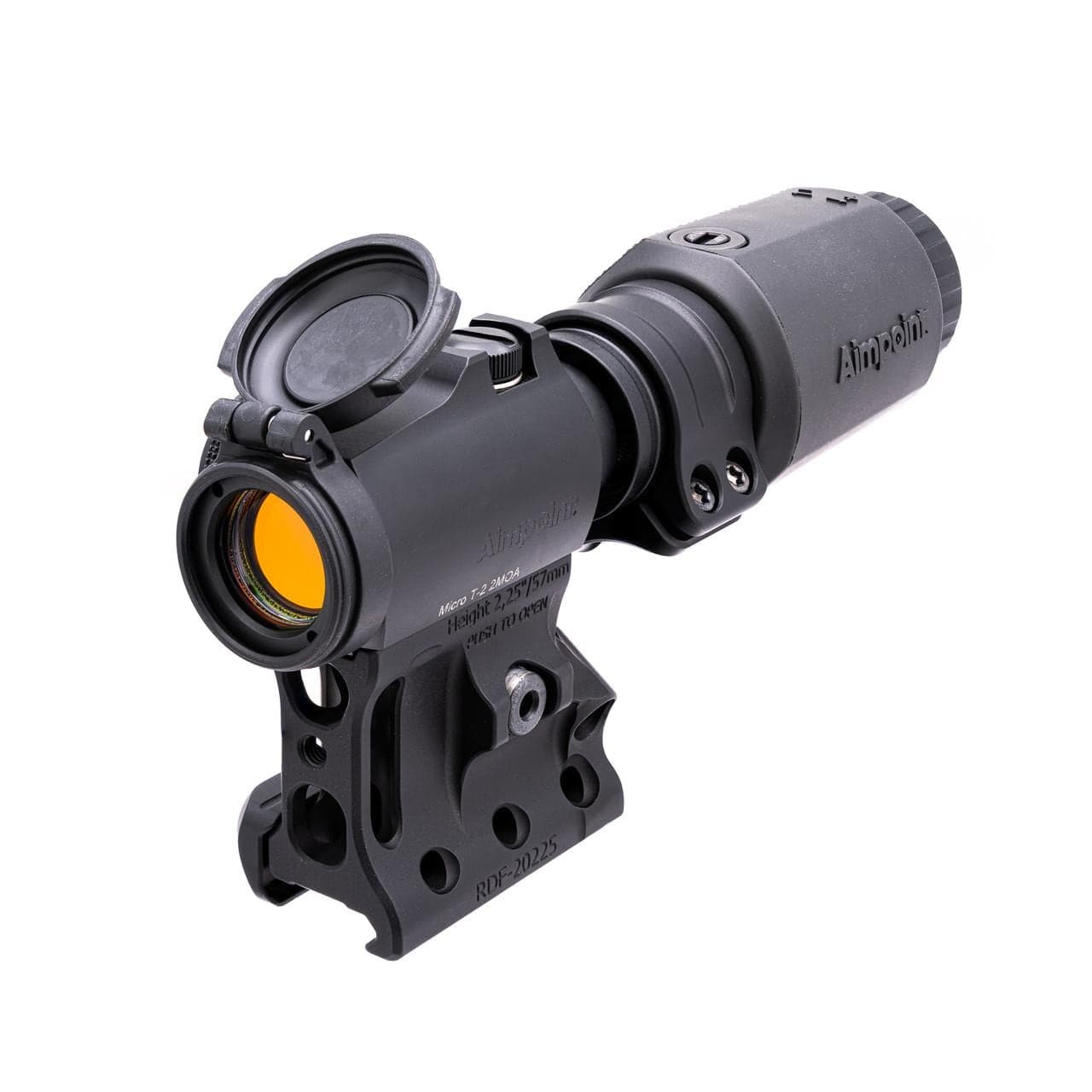

  • Micro T-2 with 3X-P magnifier on Spuhr mount, front three-quarter view
    02

    Longer Range Observation

    The 3X-P magnifier increases capability for observation or target acquisition at longer distances, and can also be used as a handheld 3X monocular.

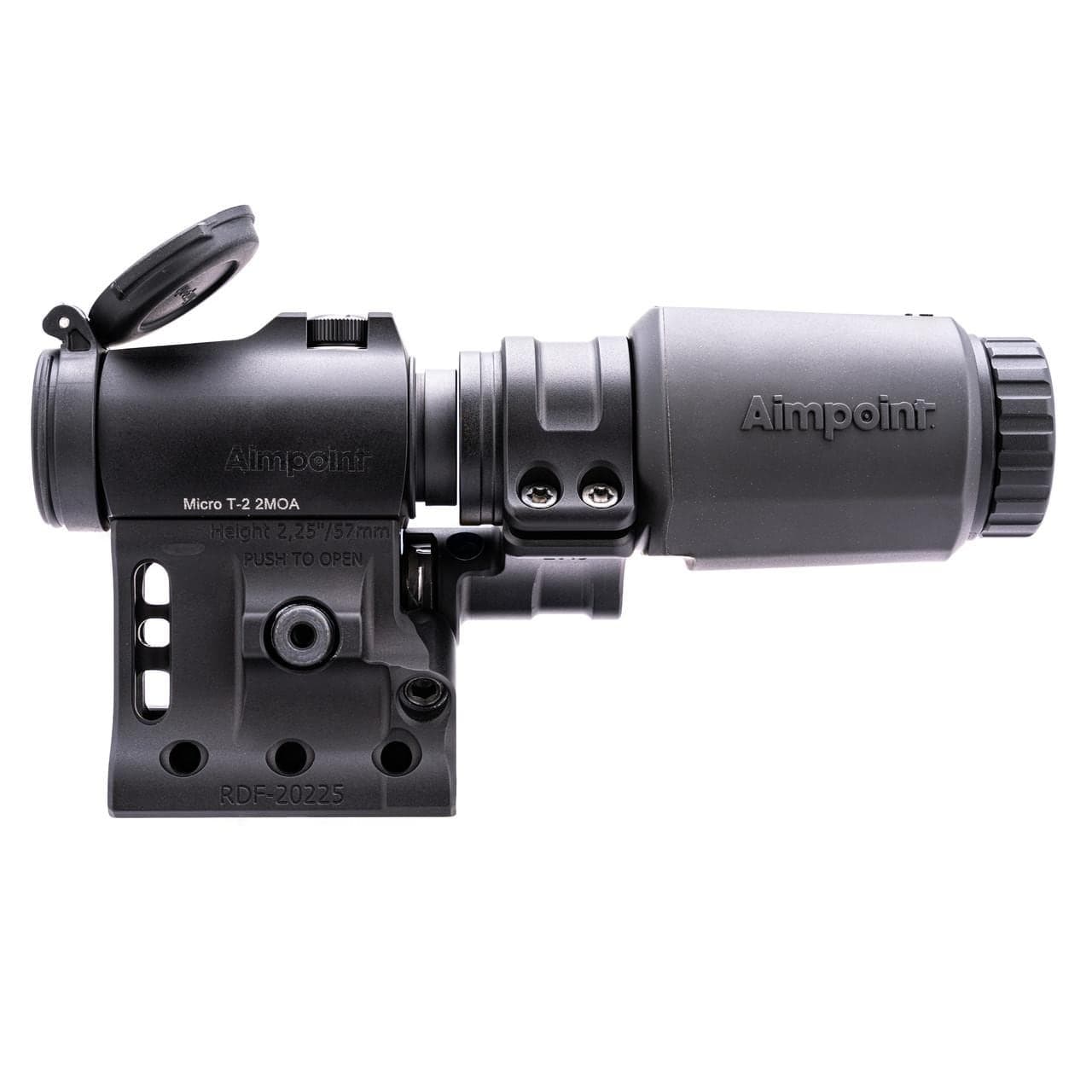

  • Micro T-2 with 3X-P magnifier on Spuhr mount, side profile
    03

    Magnified Transition

    The Spuhr flip mount moves the magnifier in and out of line, with no re-zeroing needed because the magnifier uses the red dot as its aiming reticle.

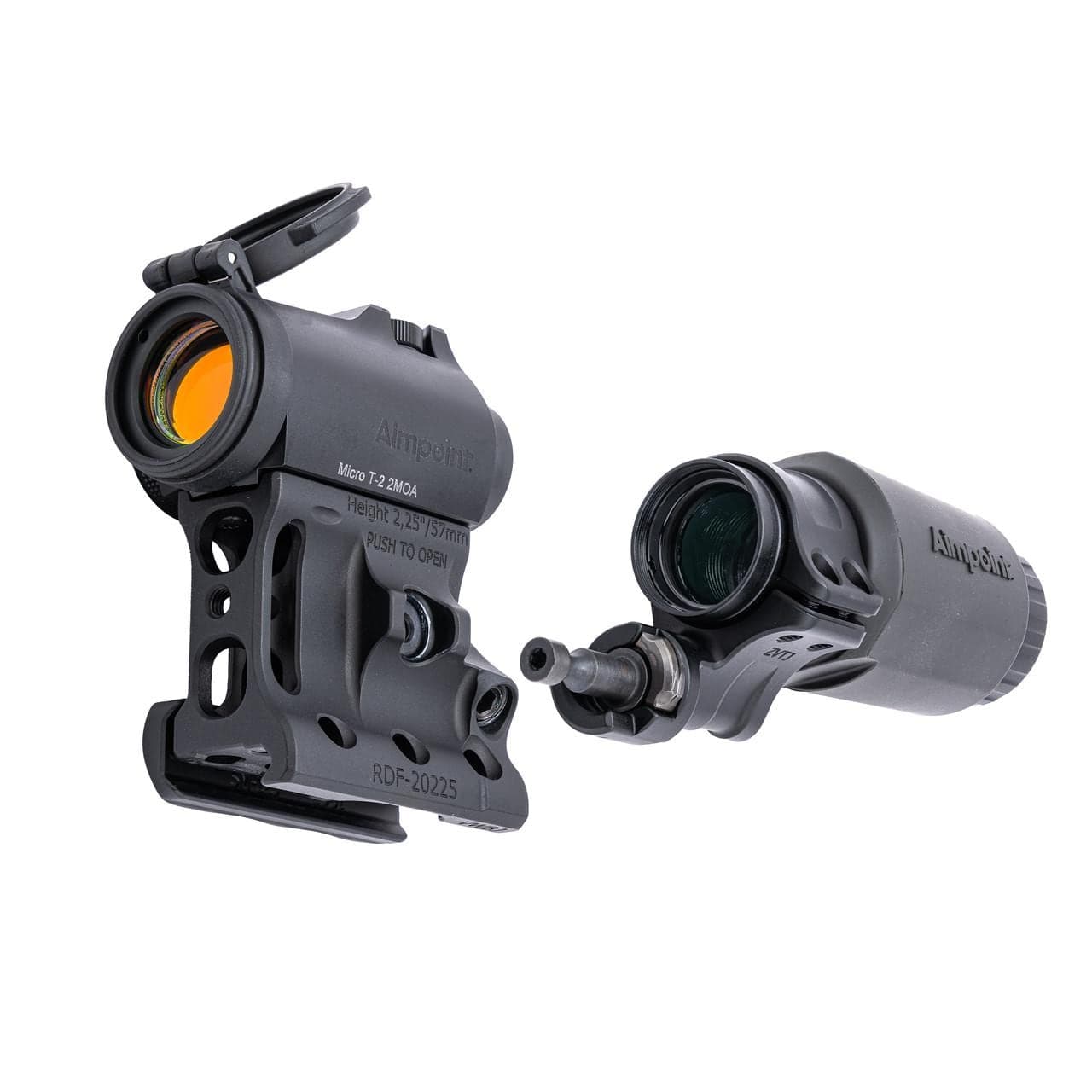

  • Micro T-2 sight and 3X-P magnifier shown separately
    04

    Night Vision Use

    Four of the twelve brightness settings are night vision compatible.

Details

  • Dot size

    2 MOA

  • Brightness settings

    12 (1 off, 4 night vision, 8 daylight)

  • Battery

    CR2032, 50,000 hrs on setting 8

  • 3X-P magnifier

    3x, 7° field of view, 56 mm eye relief

  • Weight

    Sight 3.0 oz (84 g), magnifier 7.2 oz (203 g), mounts excluded

  • Submersible

    80 feet (25 meters)

  • Temperature span

    -49 F to +160 F

  • Magnifier field of view

    7°

  • Magnifier eye relief

    56 mm (2.2 in)

  • Magnifier diopter

    -2 to +2

  • Mount

    SPUHR RDF-20225K flip mount with removable magnifier yoke, 189 g / 6.7 oz

  • Manufacturer

    Aimpoint

  • Category

    Optics & Lasers

  • Status

    Fielded

  • Missions

    Close Quarters BattleNight Operations

  • Source

    Manufacturer page

Gallery

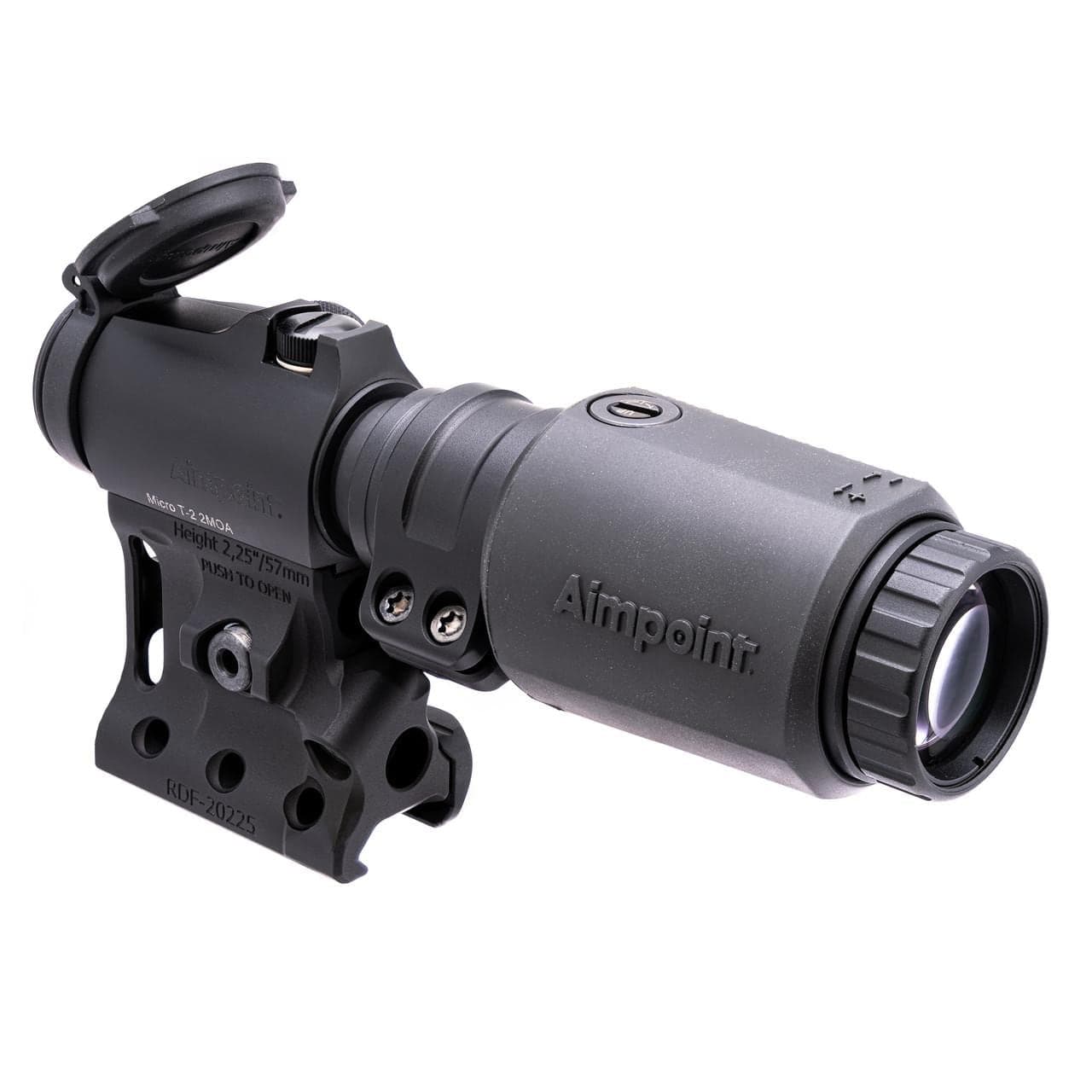

  • 3X-P magnifier with Micro T-2 behind it, three-quarter view
