L3Harris Ground Panoramic Night Vision Goggle (GPNVG)

Soldier at dusk wearing a four-tube panoramic night vision goggle on his helmet while aiming a rifle

Four-tube panoramic night vision goggleNight Vision

A helmet-mounted, four-tube image intensified goggle with a 97 degree panoramic field of view, using white phosphor 18 mm MX-10160 style tubes. Individual monoculars can be detached and run from the included power adapter as a low-profile handheld device, and it is offered with ANVIS or BNVIS mounts.

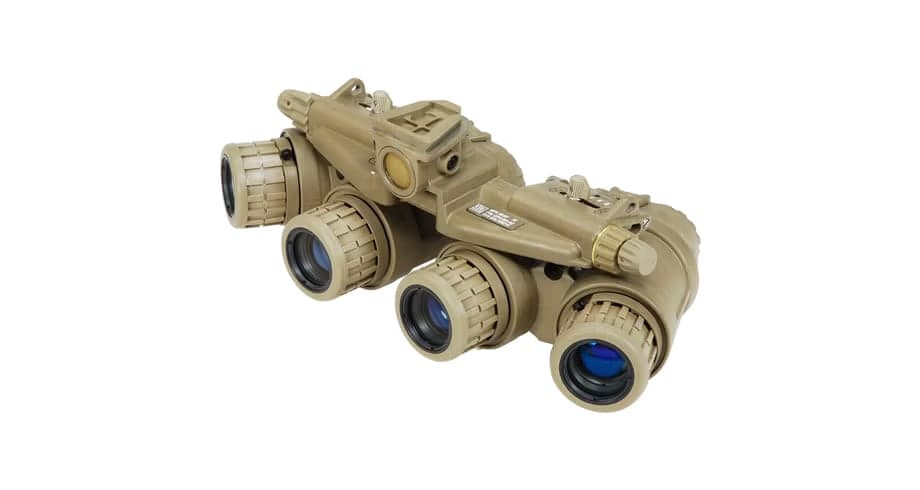

  • Tan four-tube panoramic night vision goggle on a white background
    01

    Night Operations

    L3Harris says the 97 degree panoramic field of view gives increased situational awareness during reduced light and night operations.

  • 02

    Target Detection

    White phosphor tubes show scenes in black and white with more contrast in shapes and shadows, which L3Harris says improves target detection and recognition.

  • 03

    Handheld Use

    Individual monoculars can be detached and powered with the included adapter to act as a low-profile handheld night vision device.

Details

  • Field of view

    97° (±2°) horizontal by 40° (±2°) vertical

  • Weight

    < 800 g (28.2 oz) without accessories

  • Image intensifier

    Four 18 mm MX-10160 style tubes, white phosphor

  • Battery life

    14 hrs at 25°C on (4) DL123 with low-profile battery pack

  • Immersion

    1 m for 120 minutes (min)

  • Dimensions

    9.1 L x 4.6 W x 4.1 H in (23.11 x 11.68 x 10.41 cm)

  • Diopter

    Snap-on diopter windows from +0.5 to -2.5

  • Objective focus

    18 in (45 cm ±3 cm) to infinity, independent per objective

  • Cold-weather battery life

    14 hrs at 25°C on (4) AA with cold weather battery pack

  • Mount

    ANVIS or BNVIS

  • Manufacturer

    L3Harris

  • Category

    Night Vision

  • Status

    Available through 2ATG

  • Missions

    Night OperationsClose Quarters Battle

  • Source

    Manufacturer page
